TCF
Filling plug with breather
Threaded plug in aluminium alloy without treatment, with hexagonal head. Hole for venting internal pressure diameter from 2 mm to 3,5 mm free vented. For application only on upper part of the crankcase away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended.
Available on request with anodizing treatment.
The product is not designed to operate in an inverted position.
Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.

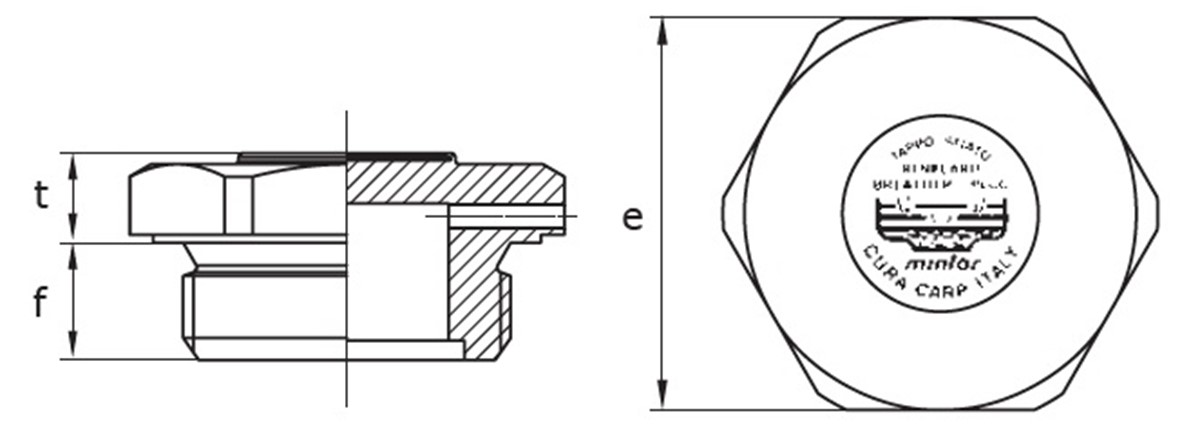

Technical Info - GAS ISO 228
| TYPE | CODE | THREAD | t | f | e | WEIGHT (g) |
| TCF0G | 1GTCF00A | 1/8" | 6.5 | 8 | 14 | 3 |
| TCF1G | 1GTCF10A | 1/4" | 7.5 | 8 | 17 | 6 |
| TCF2G | 1GTCF20A | 3/8" | 8.5 | 10 | 22 | 11 |
| TCF3G | 1GTCF30A | 1/2" | 8.5 | 10 | 27 | 17 |
| TCF4G | 1GTCF40A | 3/4" | 9.5 | 12 | 32 | 25 |
| TCF5G | 1GTCF50A | 1" | 9.5 | 14 | 40 | 43 |
| TCF6G | 1GTCF60A | 1" 1/4 | 11.5 | 15 | 50 | 82 |
| TCF7G | 1GTCF70A | 1" 1/2 | 11.5 | 15 | 55 | 112 |
| TCF8G | 1GTCF80A | 2" | 12 | 17 | 70 | 225 |
Technical Info - MB METRIC
| TYPE | CODE | THREAD | t | f | e | WEIGHT (g) |
| TCF0M | 1MTCF00A | 10 x 1 | 6.5 | 8 | 14 | 3 |
| TCF1M | 1MTCF10A | 14 x 1.5 | 7.5 | 8 | 17 | 6 |
| TCF2M | 1MTCF20A | 16 x 1.5 | 7 | 10 | 22 | 10 |
| TCF3M | 1MTCF30A | 18 x 1.5 | 8.5 | 10 | 22 | 11 |
| TCF4M | 1MTCF40A | 20 x 1.5 | 8.5 | 10 | 24 | |
| TCF5M | 1MTCF50A | 22 x 1.5 | 8.5 | 10 | 27 | 19 |
