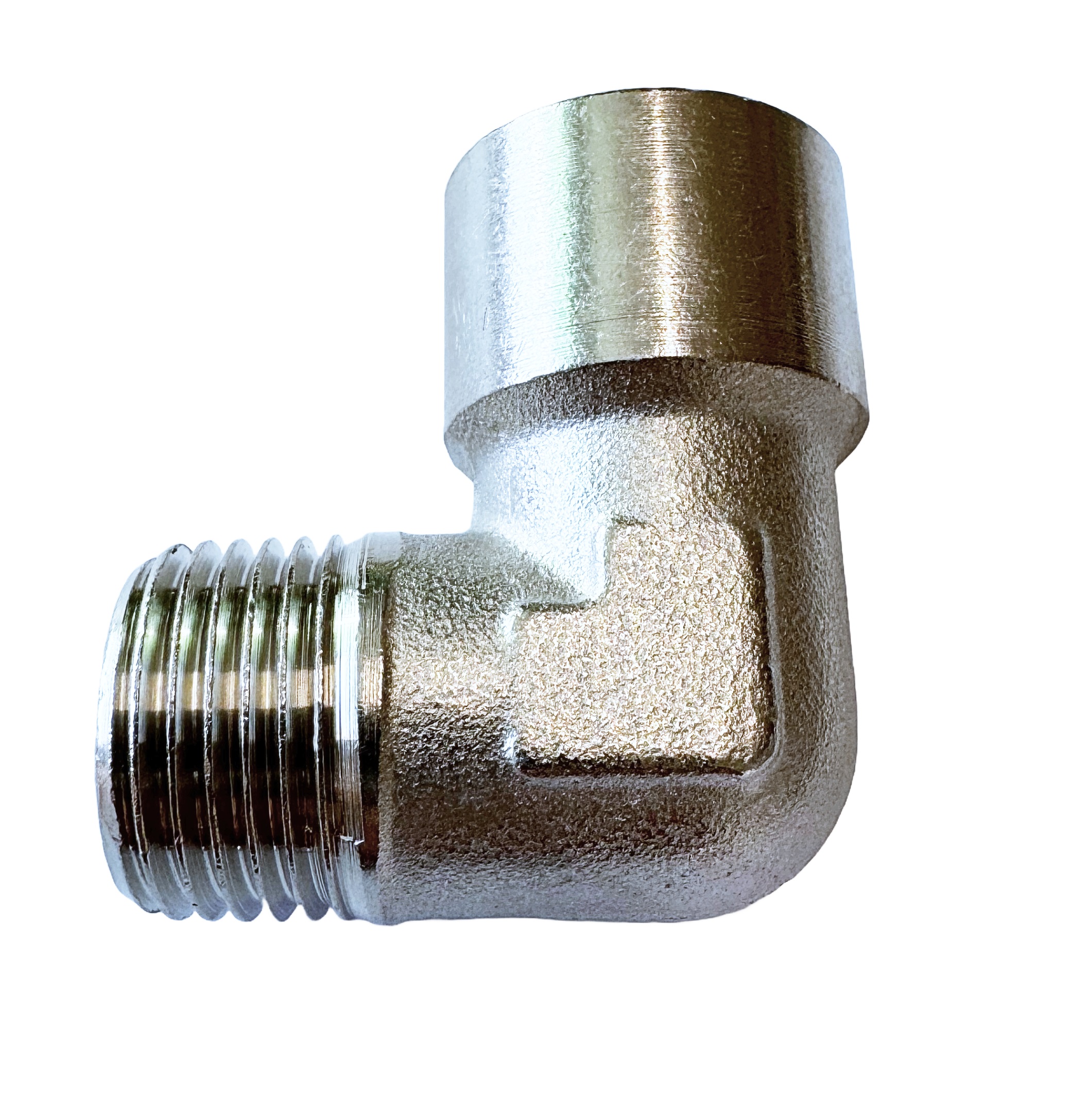

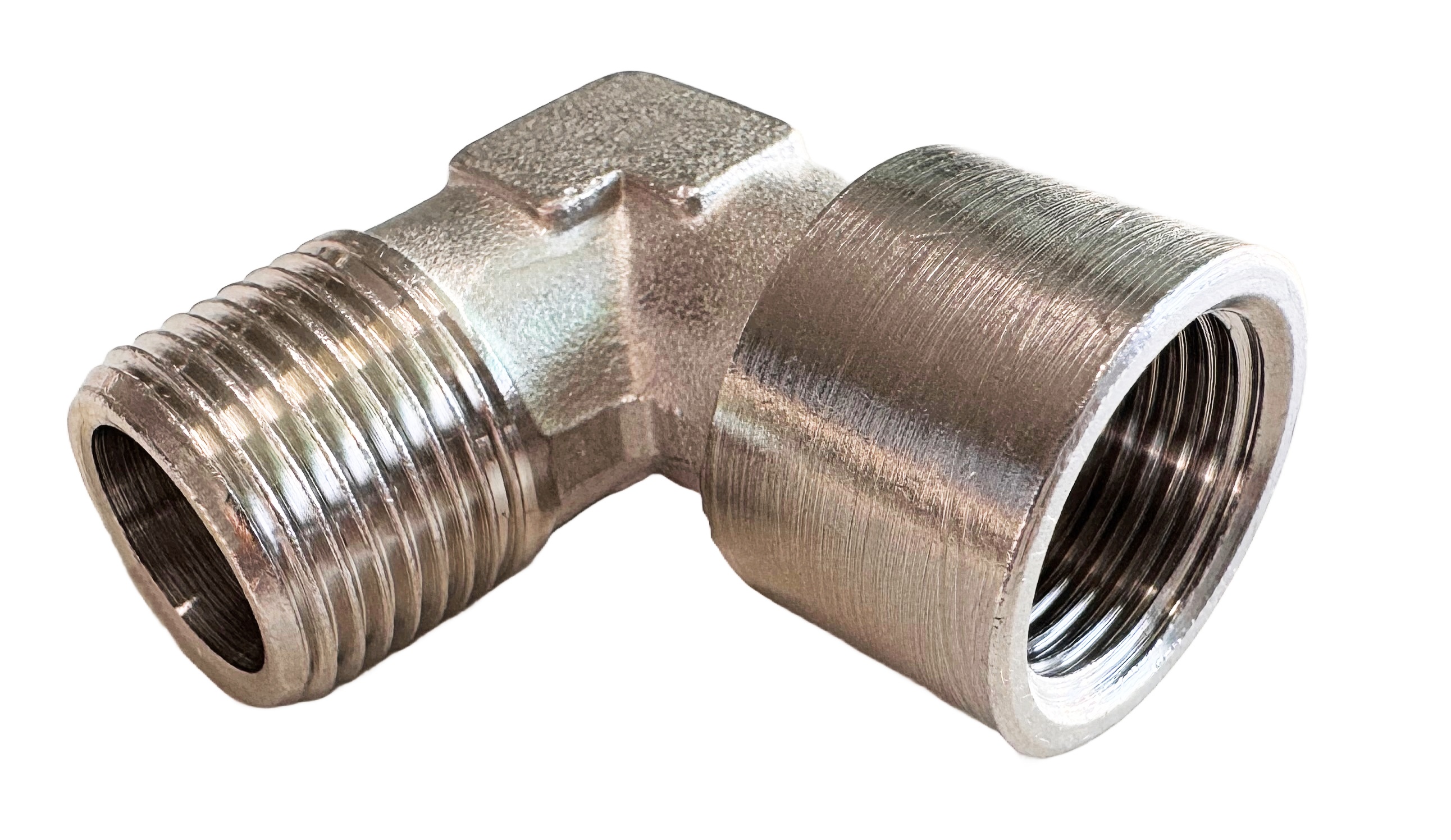

MALE/FEMALE ELBOW
90° Elbow
Tapered male/cylindrical female, ideal for ensuring vertical installation of breather plugs for lateral applications on gearboxes and tanks.
Nickel-plated brass body.
Technical Info

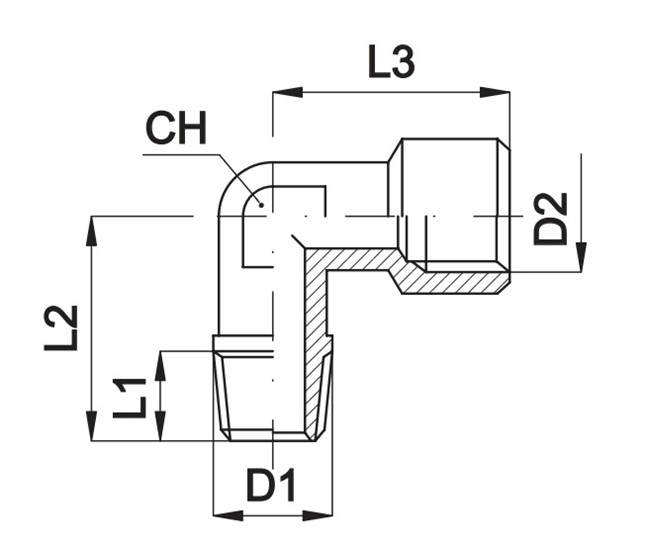

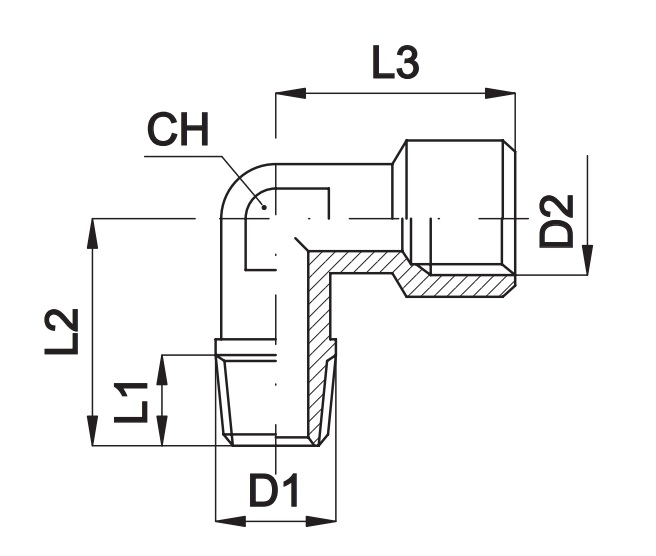

| CODE | D1 | D2 | CH | L1 | L2 | L3 |
| 1CURV00O | 1/8" TAPERED | 1/8" CYLINDRICAL | 10 | 7,5 | 18 | 21 |
| 1CURV10O | 1/4" TAPERED | 1/4" CYLINDRICAL | 13 | 11 | 25 | 26 |
| 1CURV20O | 3/8" TAPERED | 3/8" CYLINDRICAL | 17 | 11,5 | 28 | 30 |
| 1CURV30O | 1/2" TAPERED | 1/2" CYLINDRICAL | 21 | 14 | 30 | 34 |
| 1CURV40O | 3/4" TAPERED | 3/4" CYLINDRICAL | 25 | 14,5 | 32 | 36,5 |
| 1CURV50O | 1" TAPERED | 1" CYLINDRICAL | 30 | 16,8 | 39 | 45 |
